1–24S BMS Tester 50A Charging 120A Discharging for Ternary LiFePO4 LiCoO2 Batteries

Brand Name : ACEY

Model Number : ACEY-BP24-50A120A

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 2990~5920/Set (negotiable)

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Packaging Details : Plywood Case

Warranty : 1 Year Warranty with Lifetime Support

After-sales Service : 24/7 Technical Support

Supported Series : 1–24S

Overcharge Current Protection Range : 0.1~50A

Overdischarge Current Protection Range : 0.1~120A

Current Resolution : 1 mA

Current Accuracy : ±0.1%

Input Power Supply : 180~240V 50/60HZ

Contact Now

1–24S BMS Tester 50A Charging 120A Discharging for BMS of Ternary LiFePO₄ and LiCoO₂ Batteries

Product Description

ACEY-BP24-50A120A BMS tester is designed for functional and performance testing of battery protection boards in lithium battery packs. The system features high automation, fast testing speed, and high precision. It supports comprehensive testing of 13 key BMS functions, including overcharge, overcharge recovery, over-discharge, over-discharge recovery, overcurrent (charging and discharging), internal resistance, self-discharge, short-circuit protection, overcharge protection time, overcurrent protection time, over-discharge protection time, balancing current, and balancing voltage. The tester is compatible with ternary lithium (NCM/NCA), lithium iron phosphate (LiFePO₄), and lithium cobalt oxide (LiCoO₂) battery protection boards, providing a reliable solution for quality control in battery pack assembly.

Technical Specifications

  1. Input Power Requirement: 180~240V, 50/60Hz, Power: 700W
  2. Power Supply for Domestic Use: AC 220V/50Hz, voltage fluctuation within ±10%
  3. Charge/Discharge Voltage Range: 5,000 mV ~ 102,000 mV
  4. Voltage Measurement Range: Available for detecting and setting voltage during charging or discharging
  5. Current Accuracy: ±(0.1% FS + 0.1% RD)
  6. Current Measurement/Setting Error: Error range equals 0.1% of full scale plus 0.1% of reading
  7. Voltage Accuracy: ±(0.1% FS + 0.1% RD)
  8. Voltage Measurement/Setting Error: Error range equals 0.1% of full scale plus 0.1% of reading
  9. Current Resolution: 1 mA, minimum unit for current detection or setting
  10. Voltage Resolution: 1 mV, minimum unit for voltage detection or setting
  11. Cycle Count: 1–9,999 cycles, supports continuous testing of protection board parameters via programming
  12. Log Tracking: Records operational steps and exceptions during testing for traceability
  13. Data Processing & User Interface: Test data saved in Excel format
  14. Communication Interface: RS232 interface between tester and host computer ensures stable and real-time data acquisition
  15. Calibration: Supports both precision calibration and software calibration
  16. QR Code Start Function: Equipment can be started via QR code scanning
  17. MES System Integration: Compatible for connection with Manufacturing Execution Systems

Main Technical Parameter

No. Function Range Accuracy unit
1 Self-consumption of single cell 0--500 ±0.1 uA
2 Self-consumption 0--5000 ±1 uA
3 Overcharge voltage 500--5000 ±1 mV
4 Overcharge recovery voltage 500--5000 ±1 mV
5 Overcharge voltage protection delay 0--10000 ±1 mS
6 Overdischarge voltage 500--5000 ±1 mV
7 Overdischarge recovery voltage 500--5000 ±1 mV
8 Overdischarge voltage protection delay 0--10000 ±1 mS
9 Overcharge protection current protection value 0.1--50 ±0.01 A
10 Overcharge protection current protection delay 0--20000 ±1 mS
11 Overdischarge protection current protection value 0.1--120 ±0.01 A
12 Overdischarge protection current protection delay 0.1--20000 ±1 mS
13 Equalization function 500--5000 ±1 mV
opening voltage
14 Equalizing current 1--500 ±1 mA
15 Charging current 0.1--30 ±0.01 A
16 Discharging current 0.1--120 ±0.01 A
17 Charging time 0--30 ±1 S
18 Discharging time 0--60 ±1 S
19 The difference of single cell self-consume 0-500 ±0.1 uA
20 Resistance 0-999 ±1 mΏ
21 Short circuit protection time 0--5000 ±1 uS
22 The charging voltage of single cell 500--5000 ±1 mV
23 The discharging voltage of single cell 500--5000 ±1 mV
24 Open circuit voltage 102000 ±1 mV
25 Number of voltage analogs 24 0 PCS

Product Display

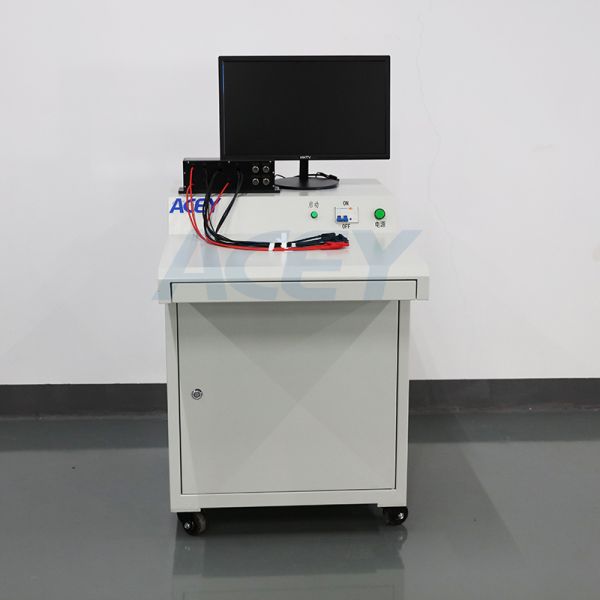

1–24S BMS Tester 50A Charging 120A Discharging for Ternary LiFePO4 LiCoO2 Batteries

1–24S BMS Tester 50A Charging 120A Discharging for Ternary LiFePO4 LiCoO2 Batteries

1–24S BMS Tester 50A Charging 120A Discharging for Ternary LiFePO4 LiCoO2 Batteries
